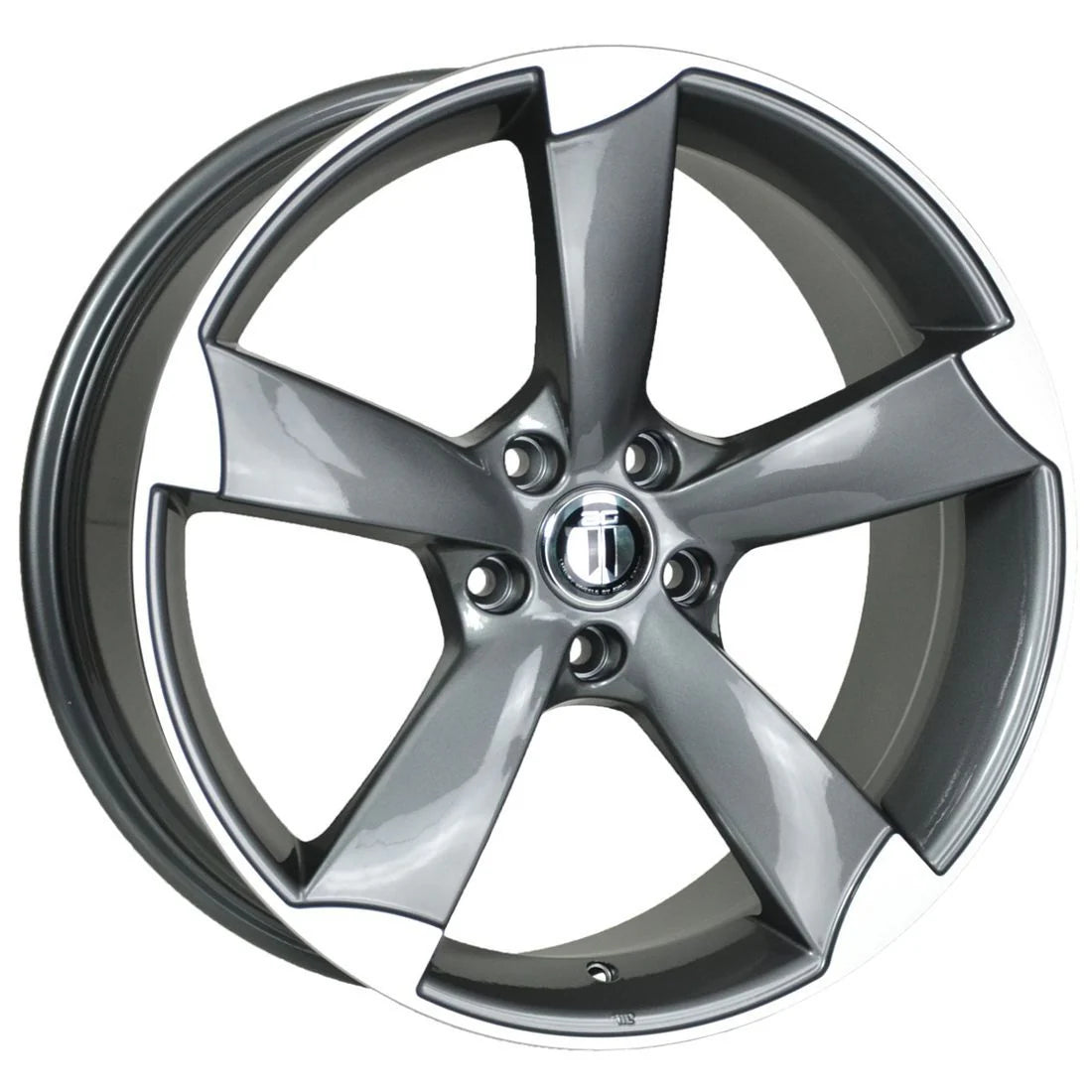

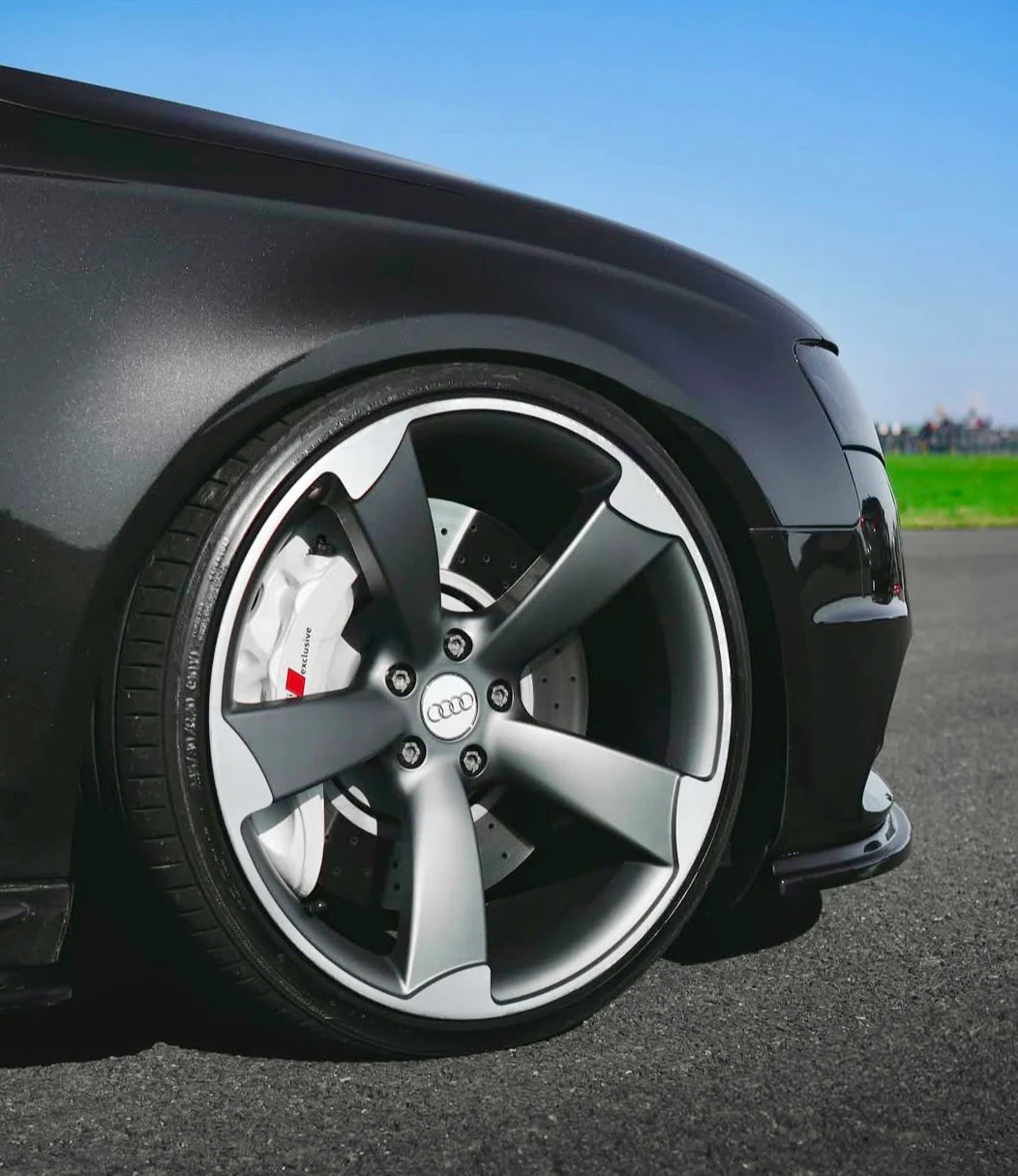

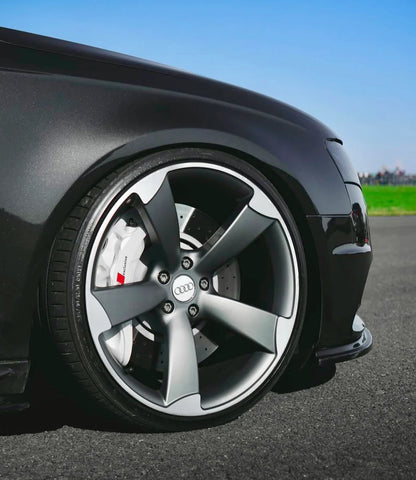

Forged Audi Rotor Monoblock Wheels

The Audi Rotor wheel became one of the most recognisable designs of the modern Audi Sport era. Its five broad, directional arms create the impression of rotation even while stationary, giving the wheel a clean but aggressive appearance.

Originally offered across several Audi platforms—including the A4, S4, A5, S5, TT RS, RS4 and RS5—the Rotor design was produced in different widths, offsets and centre bores depending on the vehicle.

These forged Rotor-style wheels retain the distinctive asymmetric face of the original design while replacing the conventional factory construction with a fully forged monoblock structure.

Each wheel is CNC-machined from a single forged blank of aircraft-grade 6061-T6 aluminium. Width, offset, centre bore and brake clearance are configured specifically for the nominated vehicle during production.

Design and Construction

• Audi Rotor-inspired directional five-arm design
• Broad sculpted spokes with a deeply recessed centre
• Fully forged monoblock construction
• CNC-machined from aircraft-grade 6061-T6 aluminium
• Vehicle-specific offset, centre bore and brake clearance
• Suitable for street and performance applications
• Square and staggered configurations available
• Manufactured individually to order

Original-Style Audi Fitments

• 19×8.5 +43 Front / 19×8.5 +43 Rear — A4 / S4
• 19×9 +33 Front / 19×9 +33 Rear — A5 / S5
• 19×9 +52 Front / 19×9 +52 Rear — TT RS
• 20×9 +26 Front / 20×9 +26 Rear — RS4 / RS5
• 20×9 +40 Front / 20×9 +40 Rear — A6 / S6

Mounting Specifications

• 5×112 bolt pattern
• Conventional five-bolt mounting
• 66.6 mm centre bore for most longitudinal Audi applications
• 57.1 mm centre bore for compatible TT RS applications

The 20×9 +26 configuration provides the deepest factory-style profile and is the specification most commonly associated with the aggressive RS4 and RS5 Rotor wheel.

Custom Fitments

Alternative diameters, widths, offsets, centre bores and bolt patterns can be manufactured for other Audi and compatible vehicle applications.

Because Rotor wheels were fitted across several Audi platforms, the correct specification must be selected according to the vehicle model, brake package, suspension setup and desired guard position.

For custom specifications or assistance selecting the correct configuration, please email help@pkmwheels.com.au and our team will help determine the appropriate fitment for your vehicle.

Lead Time

Every set is custom manufactured to order. Please allow approximately 6–7 weeks for production before dispatch.

These are aftermarket wheels inspired by the original Audi Rotor design and are not manufactured, licensed or endorsed by Audi or Audi Sport.
